| Spec | Parameter |
|---|---|
| Cable diameter： | (after twisting) MAX. 14mm |
| Cable reel specification： | PN800ABS standard disc aperture 80mm |
| Load capacity： | The reel is 78MM, with a maximum load capacity of 300kg |
| Pantograph motor power： | 15kw AC motor (6p, with encoder) |
| Twisted arm and fork type | (dynamic balance correction) |
| Torch driver | ETD/Huichuan |
| Take-up motor： | 22kw AC motor (6p, with encoder) |
| Cable motor： | 2.2KW variable frequency motor with reducer |
| Screw lifting： | 1.5kw motor |
| The maximum structural speed of the winch arm is | 500 revolutions per minute (650 revolutions per minute is reserved in the design) |
| It can be increased according to the actual | product weight and actual situation |
| Cable pitch： | 20-300MM (set electronically according to product requirements, in contact Touch screen settings) |
| Cable pitch： | The cable is driven by a motor, a reduction gearbox, and a precision ball screw. |
| PLC brand： | Siemens, equipped with remote communication module |
Technical support can be remotely debugged, repaired and diagnosed, and the warranty period for electrical repair accessories can be extended by 6 months

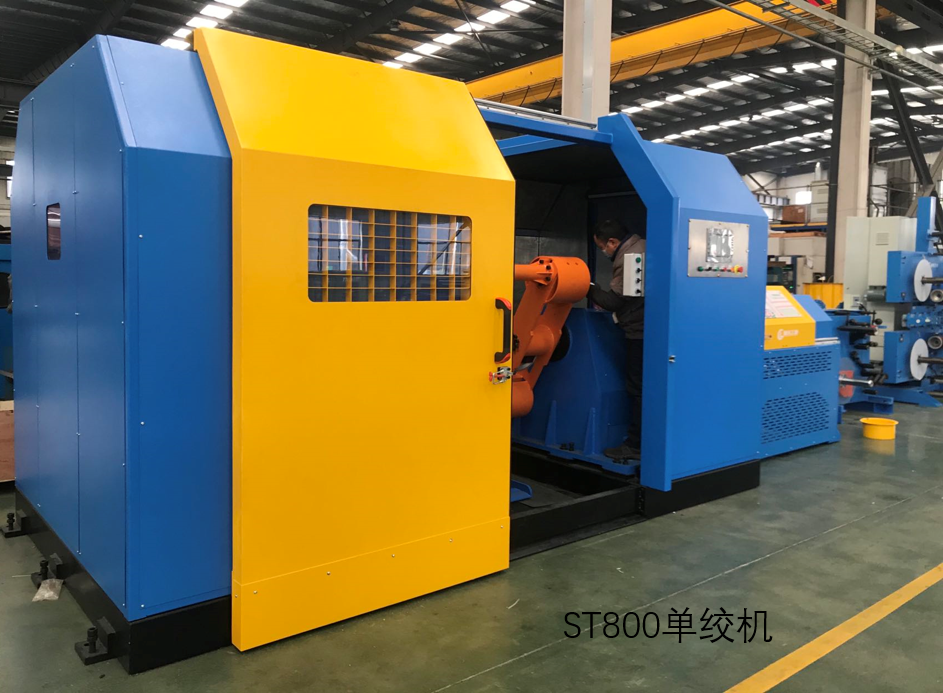

Wire reel specification 800 type
